# Binary Trees

ย

“The most important concept in computer science” - Josh Hug

## Humble Origins #

Linked lists are great, but we can do better! Let’s try **rearranging the pointers** in an interesting way.

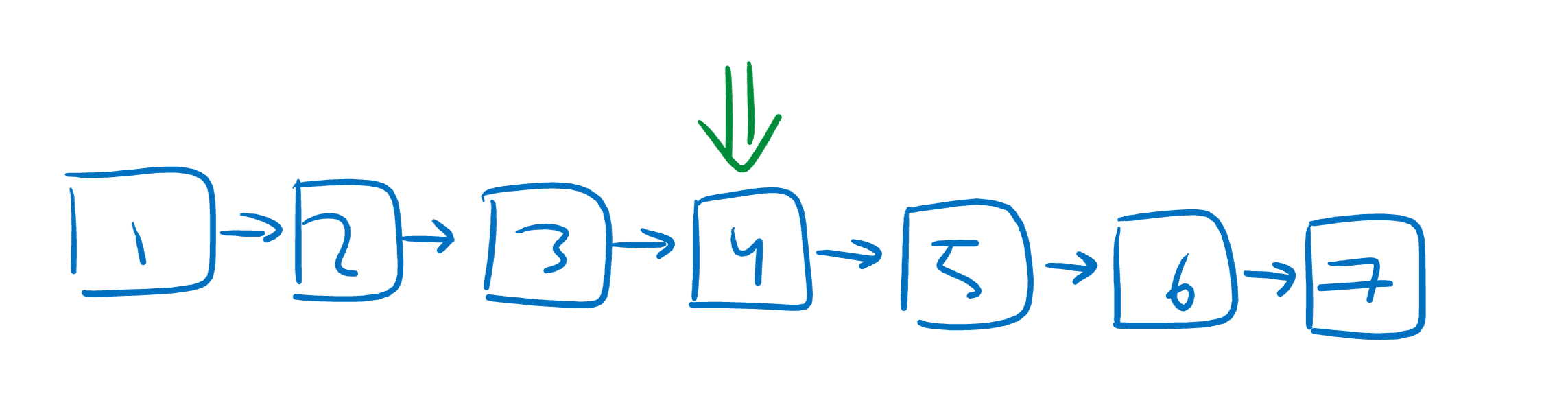

Instead of starting at one end of the list, let’s set our first pointer at the **middle** of the list!

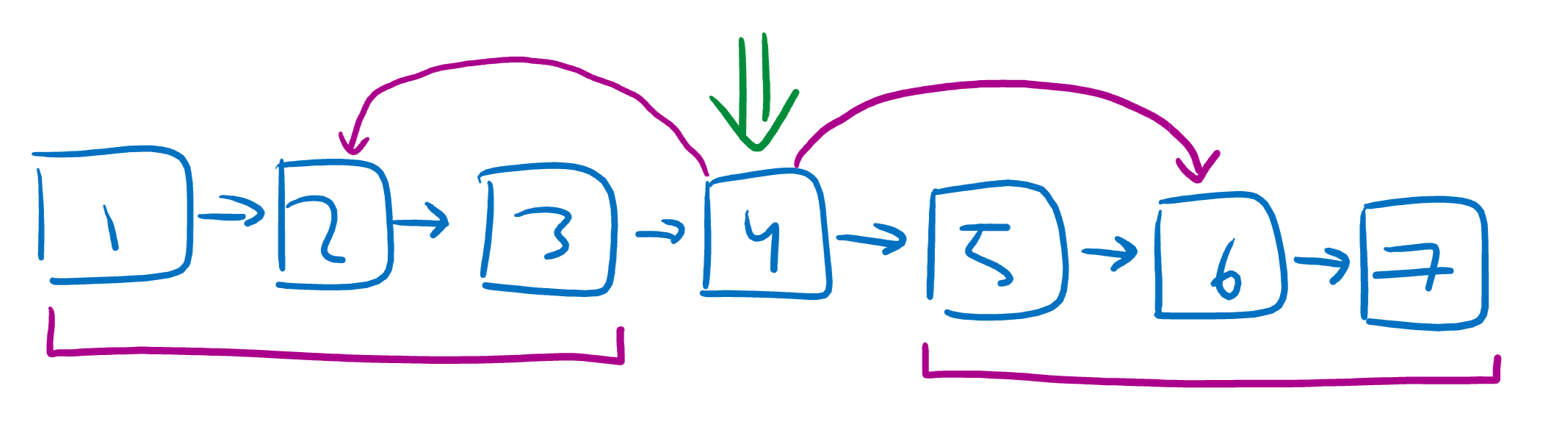

Now, let’s make new pointers going to the **center** of each **sublist** on the left and right of the center.

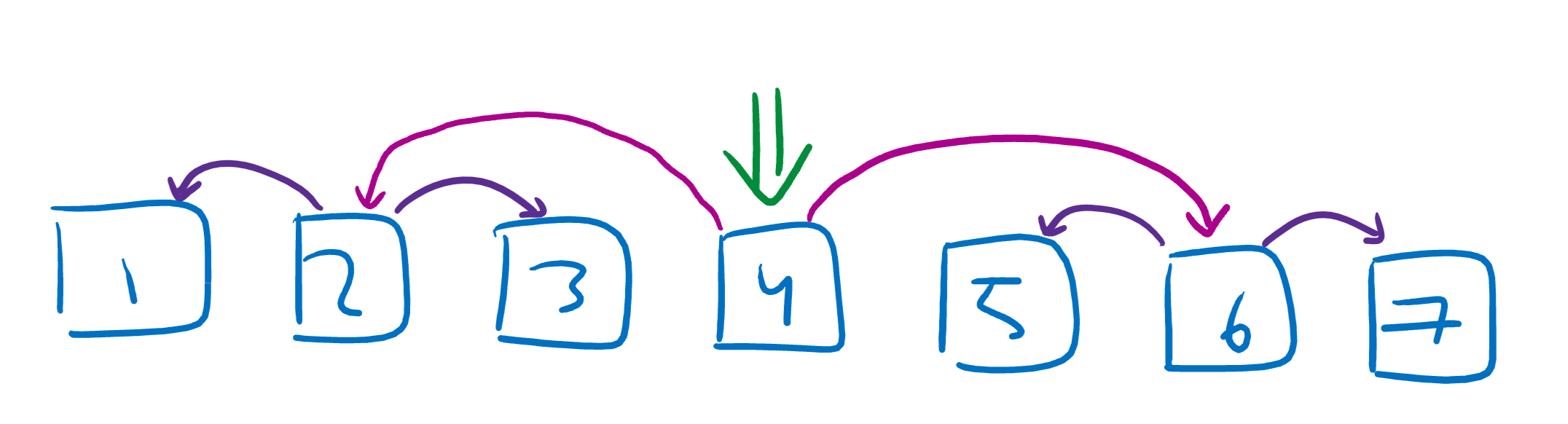

Let’s do it again!

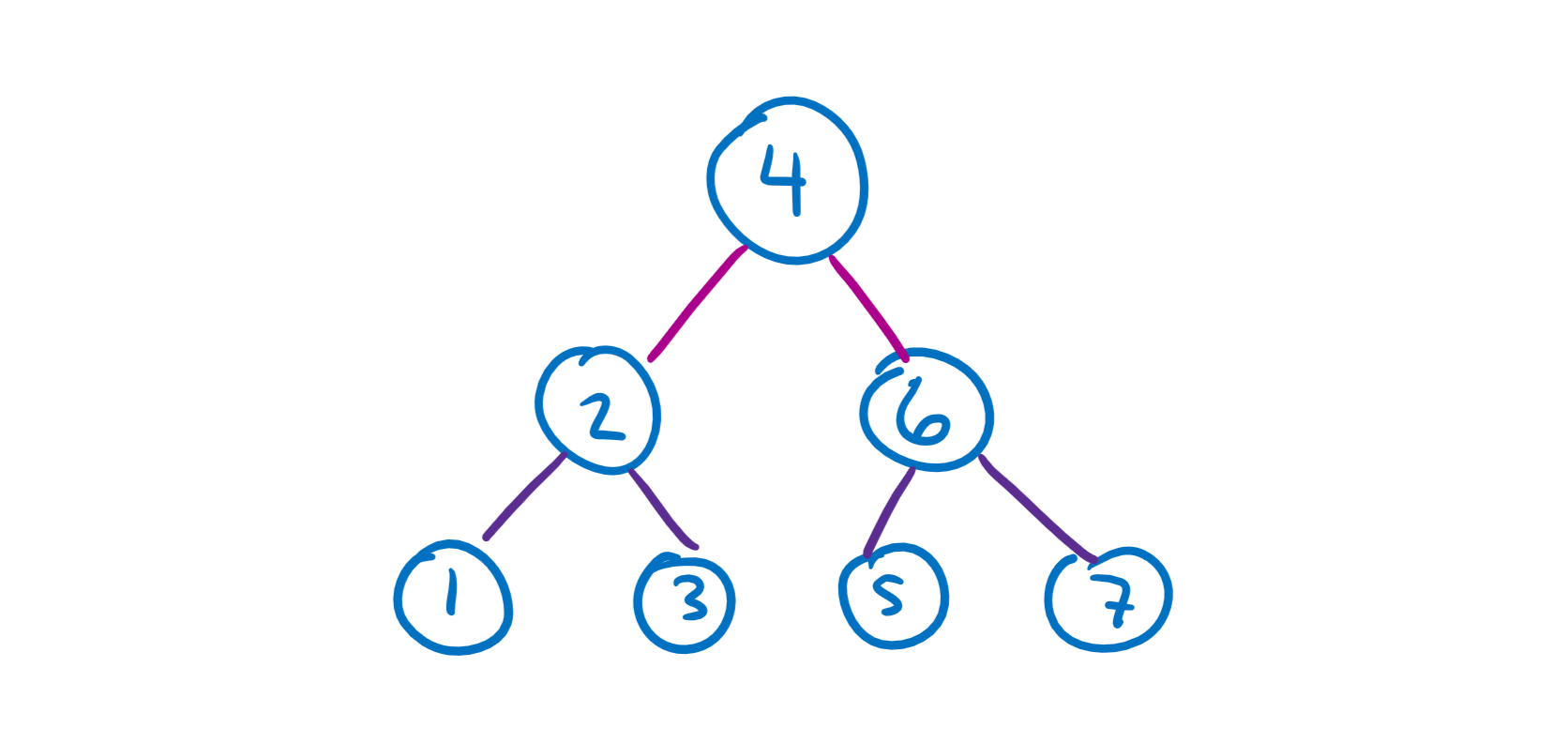

Would ya look at that, we’ve got a **tree**! ๐ฒ

## Types of Trees #

Right now, we can determine some properties that all trees have.

- All trees have a
**root node**. - All nodes can point to
**child nodes.**Or, if they don’t have any children, they are**leaves.**

We can add more and more constraints to our tree to make them more useful!

First, let’s add the constraint that **node can only have 2 or fewer children** to create a **binary tree.**

Then, let’s **ensure our tree is sorted** to create a **binary search tree.** A tree is sorted if it has these properties:

- Every value in the
**left subtree**of a node is**less than**the node’s value. - Every value in the
**right subtree**of a node is**greater than**the node’s value. - Values are
**transitive**- there are**no duplicate values**. - The tree is
**complete**- it is possible to**compare any two values**in the tree and say that one is**either less than or greater than the other.** - The tree is
**antisymmetric**- If`p < q`

is true and`q < r`

is also true, then it must follow that`p < r`

.

## Tree Operations #

There are **three important operations** that trees should support: **find, insert, and delete.**

**Find**
#

Finding a value in a tree uses the Binary Search algorithm.

### Insert #

The insert algorithm is **very similar to binary search.** Here are the steps to take:

- Search for the item.
**If it’s found, then do nothing**since the value is already in the tree. - If it’s not found (search would return null in this case), then create a node and put it where it should be found. If using recursion, this last step is already done- all we need to do is return a new node!

Here’s the algorithm:

```
public BST insert(BST T, Key sk) {
if (T == null) {
// Create new leaf with given key. Different from search
return new BST(sk, null, null);
}
if (sk.equals(T.key)) {
return T;
} else if (sk < T.key) {
T.left = find(T.left, sk); // Different from search
} else {
T.right = find(T.right, sk); // Different from search
}
}
```

### Delete #

This one’s a bit trickier because we need to make sure that the new tree still **preserves the binary search tree structure.** That means that we might have to shuffle around nodes after the deletion. There are **three cases:**

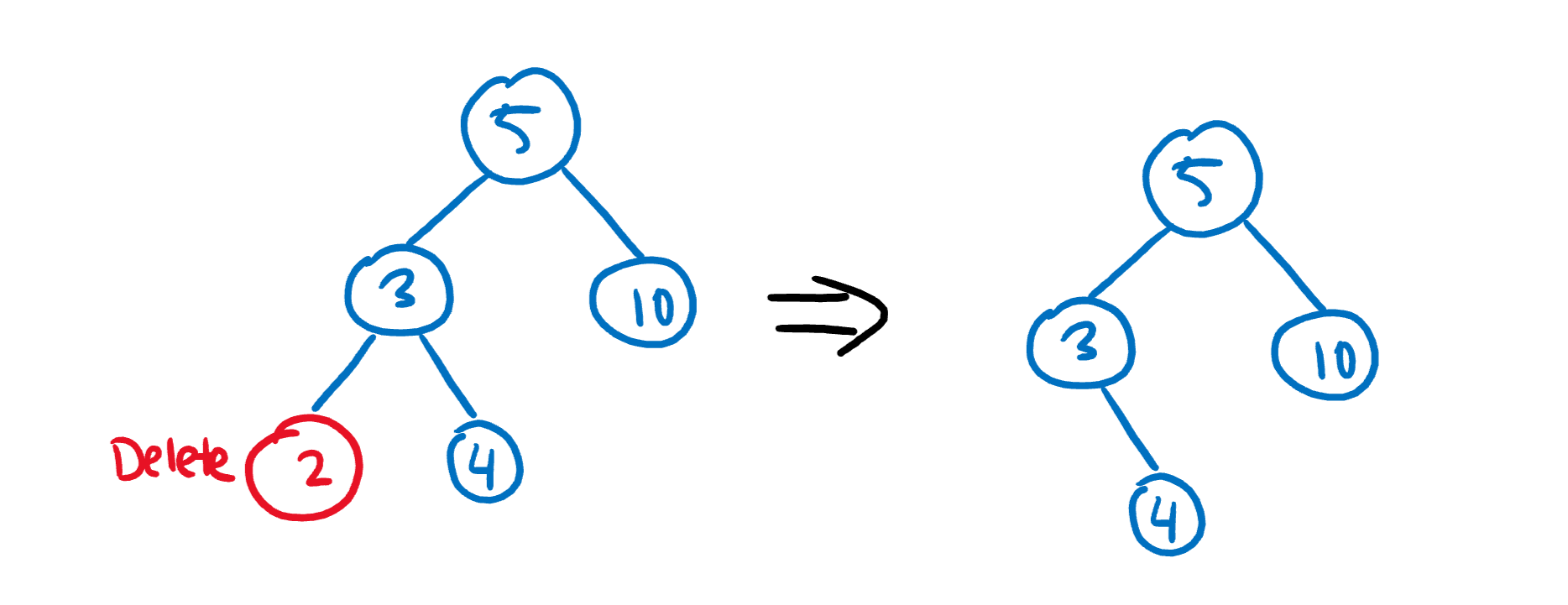

A) The node to delete is a **leaf**. This is an easy case- just remove that node and you’re done!

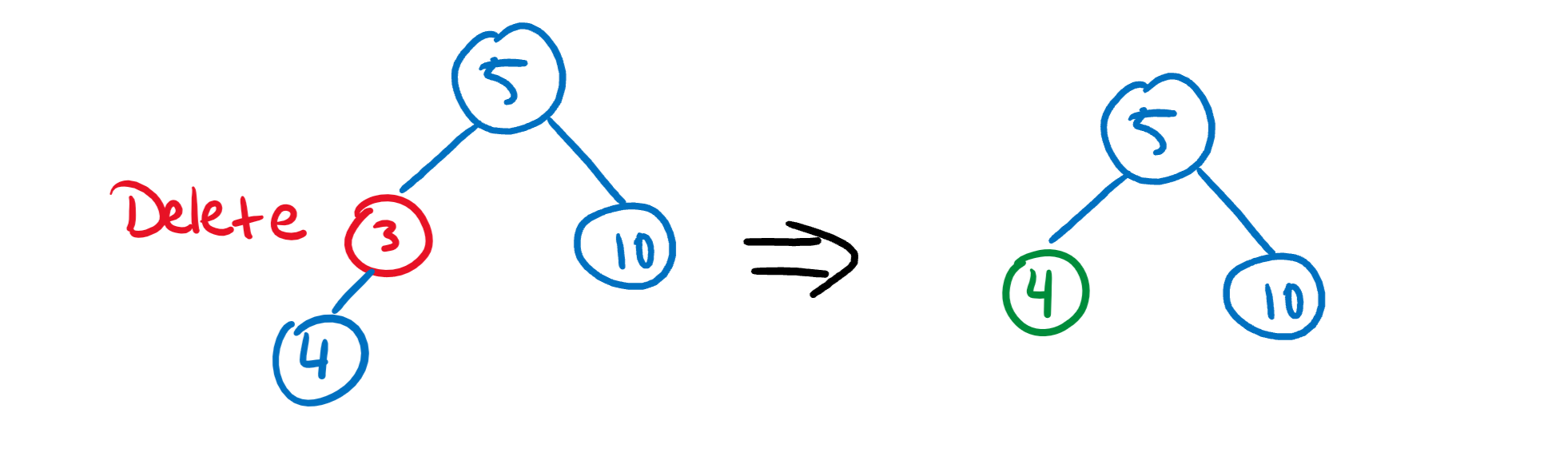

B) The node to delete has **one child.** In this case, **swap** the node with its child, then **delete the node.**

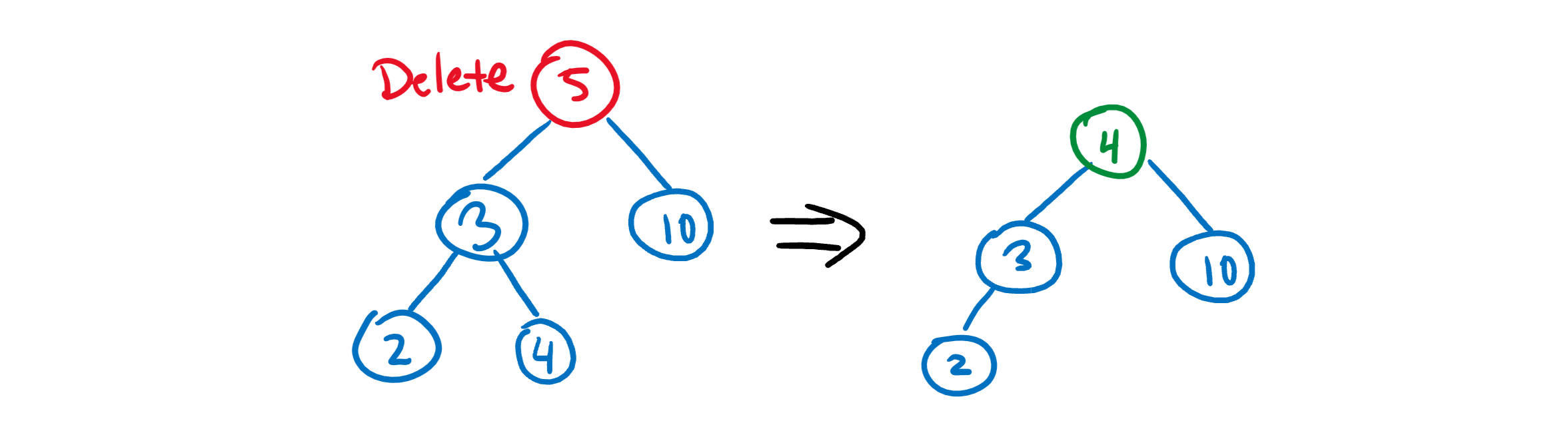

C) The node to delete has **two children.** This one’s trickier, because we still need to preserve the tree structure! In this case, we have to **traverse the node’s children** to find the **next biggest value** and swap that up to replace the old node.

## Asymptotic Analysis #

A binary tree can be **bushy** or **spindly.** These two cases have dramatically different performances!

**Bushy** trees are the **best case.** A tree is bushy if **every parent has exactly 2 children.**

A bushy tree is guaranteed to have a height of $\Theta(\log(n))$ which means that the runtimes for adding and searching will also be $\Theta(\log(n))$ .

**Spindly** trees are the **worst case.** A tree is spindly if **every parent has exactly 1 child.** This makes the tree essentially just a linked list!

A spindly tree has a height of $\Theta(n)$ which means that the runtimes for adding and searching will also be $\Theta(n)$ .

In Balanced BSTs, we will explore ways of guaranteeing that a tree is bushy!

## Limits of Trees #

While trees are extremely versatile and fantastic for a variety of applications, trees have some limitations that make it difficult to use in some situations.

**All items in a tree need to be comparable.**We can’t construct a binary tree out of categorical data, like models of cars, for example.**The data must be hierarchical.**If data can be traversed through in multiple ways, or forms loops, Graphs are probably better.**The best case runtime is**$\Theta(\log(n))$ . This might seem good, but other data structures like Tries and Hash Tables can be as good as **** $\Theta(1)$ !

## Tree Traversals #

Check out these pages for information on how to go through each element of a tree!
